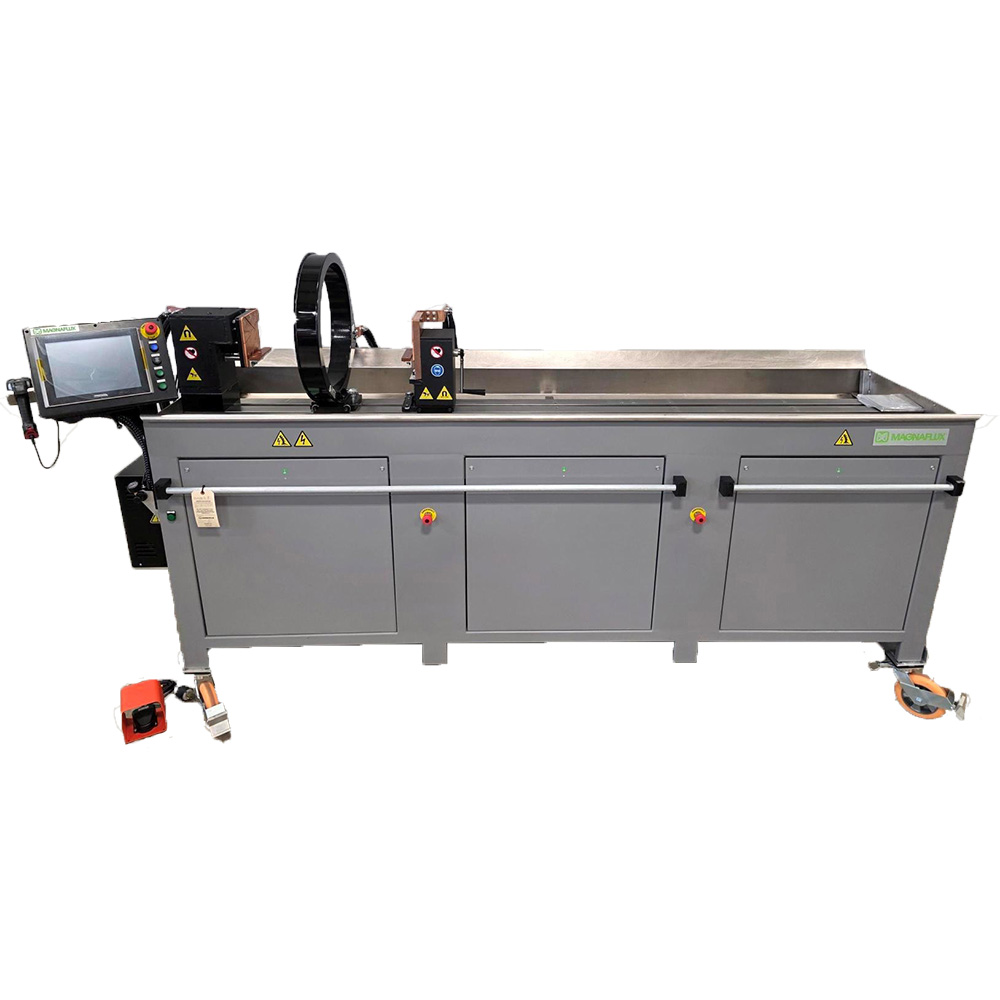

MD-Series

Multi-Directional Magnetic Wet Benches for AC, HWDC or 1-Phase FWDC Magnetization

The MD-Series multi-directional magnetic bench offers Alternating Current, Half Wave Direct Current and 1-phase Full Wave Direct Current for time-saving multidirectional magnetization which can find defects in all orientations with one mag-cycle.

The two outputs (contact and Flux Flow coil) each offer AC, HWDC or 1-Phase FWDC, and are independently adjustable to balance the magnet field intensity.

MD-Series magnetic benches are available in three models: MD-2030, MD-2060 and MD3-2060.

Key Properties

		MD-2030	MD-2060	MD3-2060
Magnetizing Current Capacity at Contacts (amps)	AC	2,500	5,000	5,000
	HWDC	3,000	6,000	6,000
	FWDC	3,000	6,000	6,000
Maximum Part Length		41 in / 104 cm*	41 in / 104 cm*	41 in / 104 cm*
Maximum Part Diameter		-	-	16 in / 40 cm*

* See Product Data Sheet for additional configuration options

Benefits

Maximize part throughput

Maximize throughput by magnetizing a part in all directions in a single shot
Reduce processing time with operator-enabled automatic Double-Mag Shot
Generate 300+ shots per hour at maximum unit output
Optional Database System with advanced touch screen operating interface and barcode scanner eliminates time spent on manual inputs and record keeping
Optional automated conveyer system minimizes part handling by transporting parts directly to the inspection booth

Advanced process control

Assure testing accuracy and repeatability with direct amperage control and fluctuation mitigation
Maximize consistency between tests with 1,000 customer-programmable techniques
Track productivity using the automatic parts counter
Prevent accidental and unauthorized alterations with multiple user profiles and varying tiers of control for a range of operator experience levels
Daily reminder alarms help ensure measurements are compliant with process specification requirements

Real-world dependability for minimal downtime

Allen-Bradley PLC provides reliable controls and off-the-shelf replacements
Advanced agitator system helps prevent blockages and clumping by keeping magnetic particles well suspended
Rely on our industry leading warranty with best in-class service delivered by a global network of trained Magnaflux authorized service centers

Easy to use and maintain

Make quick operational adjustments using the simple, user-friendly operator interface with touch-screen controls
External pump system provides fast access for easy cleaning and service

Features

5% duty cycle of 0.5 seconds on, 10 seconds off at maximum output
Allen-Bradley PLC
Control circuit feedback loop for amperage regulation and repeatability
Advanced touch-screen operator interface
1,000 customer-programmable techniques
Automatic parts counter
User-controlled security systems with password protection, supervisor locks and customizable operator access profiles
Daily reminder alarms to verify UV light, visible light and particle bath concentration for process control requirements
Dimmable UI display helps reduce operator eye fatigue and keeps ambient light below required minimums

External pump system for particle bath agitation, circulation and application
Integrated rapid-reversing FWDC or decaying-AC demagnetization with 1-touch control
Low-voltage output minimizes electrical exposure for operator safety
Adjustable mag shot time from 0.5 to 2 seconds
Automatic Double-Mag Shot with 1-touch control
Mag-shot-activating front push bar with 1-touch control to enable/disable this feature
Large, easy-to-read digital ammeters confirms amperage sent through the part
Current assurance alarm with visual and audible alerts and alarm log to confirm magnetizing current delivery
Solid state circuitry increases lifetime and performance of machinery

Upgrade Options

Database System upgrade with advanced touch screen operating interface and barcode scanner for quality control traceability, record automation and reporting
XG-Series conveyor inspection booth maximizes throughput by automatically transferring inspection-ready parts to an adjacent inspection booth
Inspection Enclosure Hoods with ventilation fan for a darkened inspection area without sacrificing function and operator comfort, includes a EV6000 hand-held LED UV lamp, flame resistant curtains and visible lighting
Auto-Bath upgrade with 22 in / 55 cm capacity decreases processing time by automatically clamping, bathing, magnetizing and unclamping the part
ST700 stationary overhead LED UV lamp, 100-240 V, 50-60 Hz

Ordering Information

Magnaflux magnetic particle equipment is built to orderPlease download and complete the MPI Checklist, linked above, and contact us for a detailed quote.
