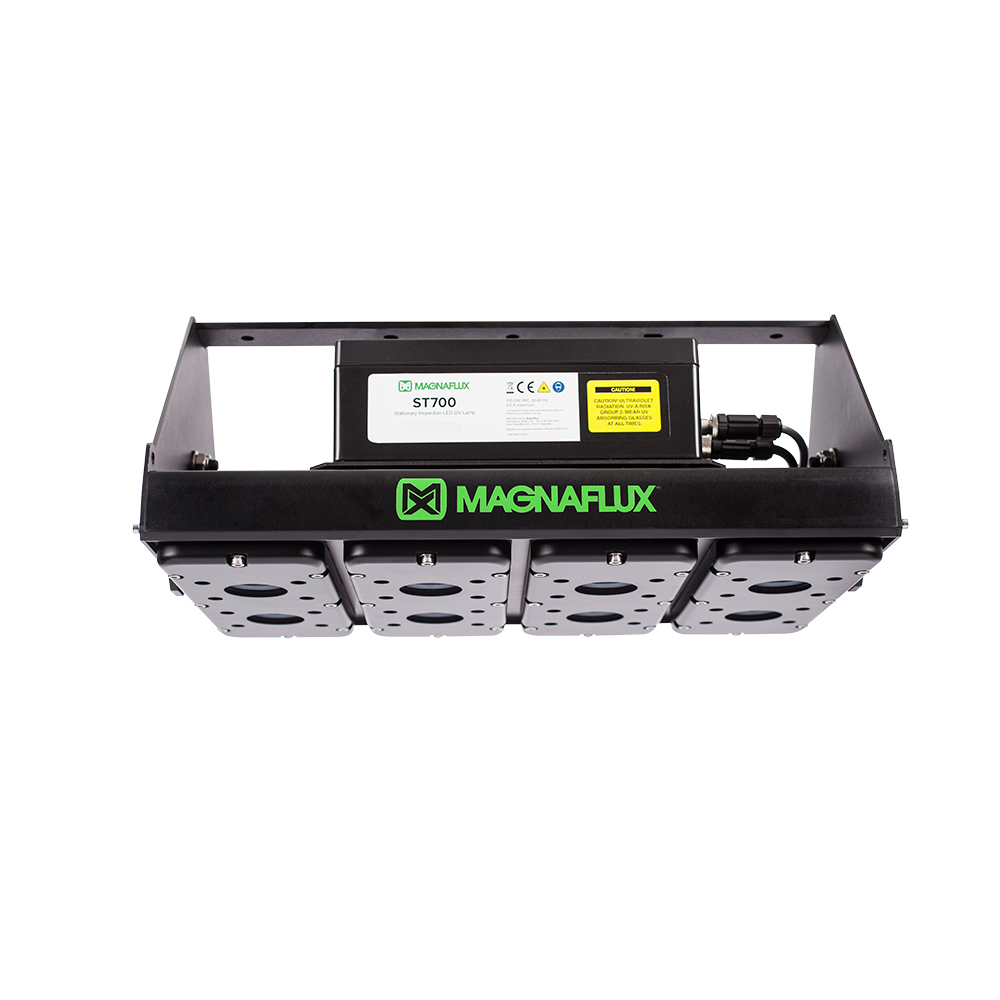

ST700

Stationary Inspection LED UV Lamp

The ST700 is an inspection-grade overhead LED UV flood lamp with high-intensity UV-A illumination for non-destructive testing examinations such as fluorescent penetrant and magnetic particle testing.

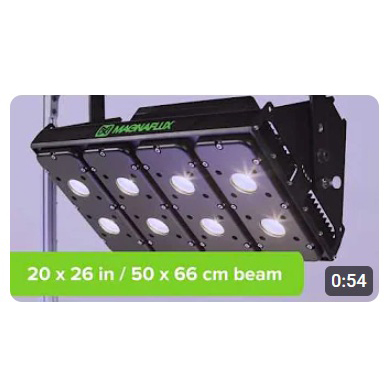

The ST700 projects an ultra-wide, even beam of UV-A light straight onto the inspection area, allowing for quick examination of parts with minimal part handling. The high intensity beam makes indications stand out bright and clear, speeding up the inspection process. Proprietary optics and integrated filter minimize visible light emission and prevent decline of UV intensity over time.

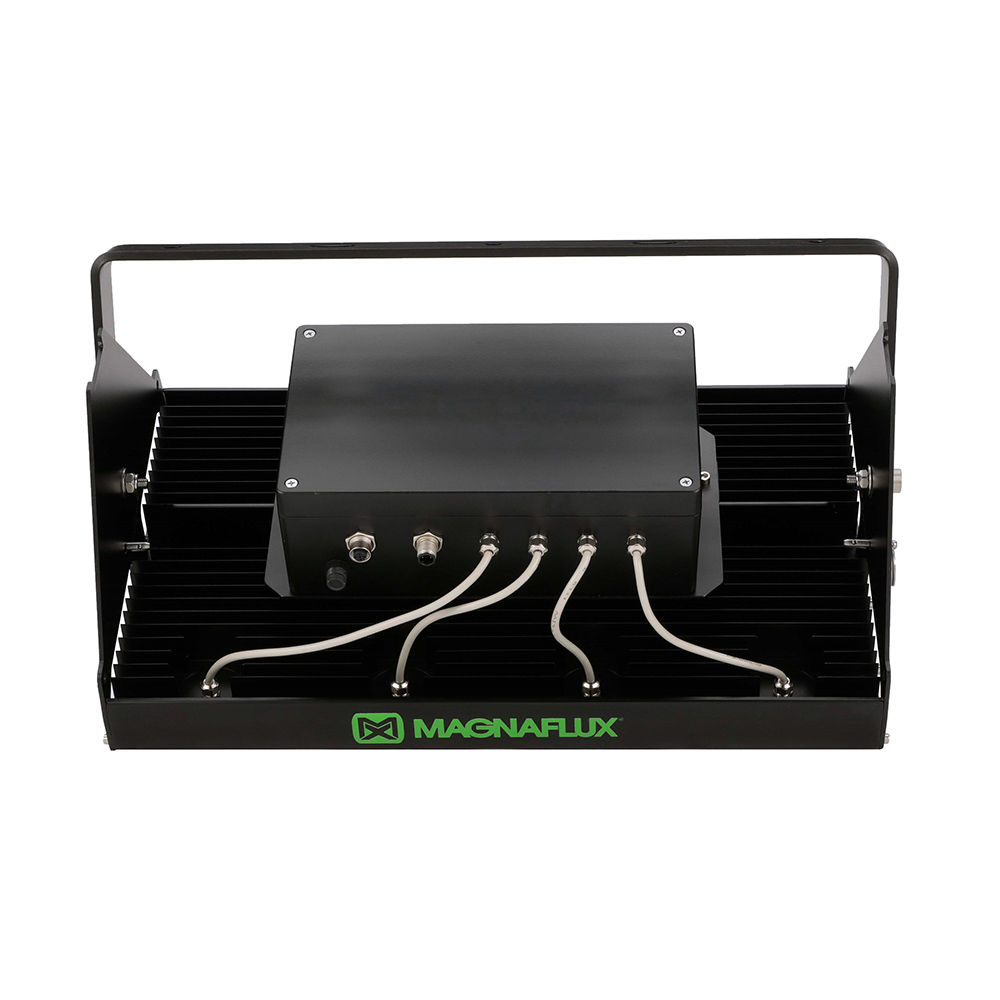

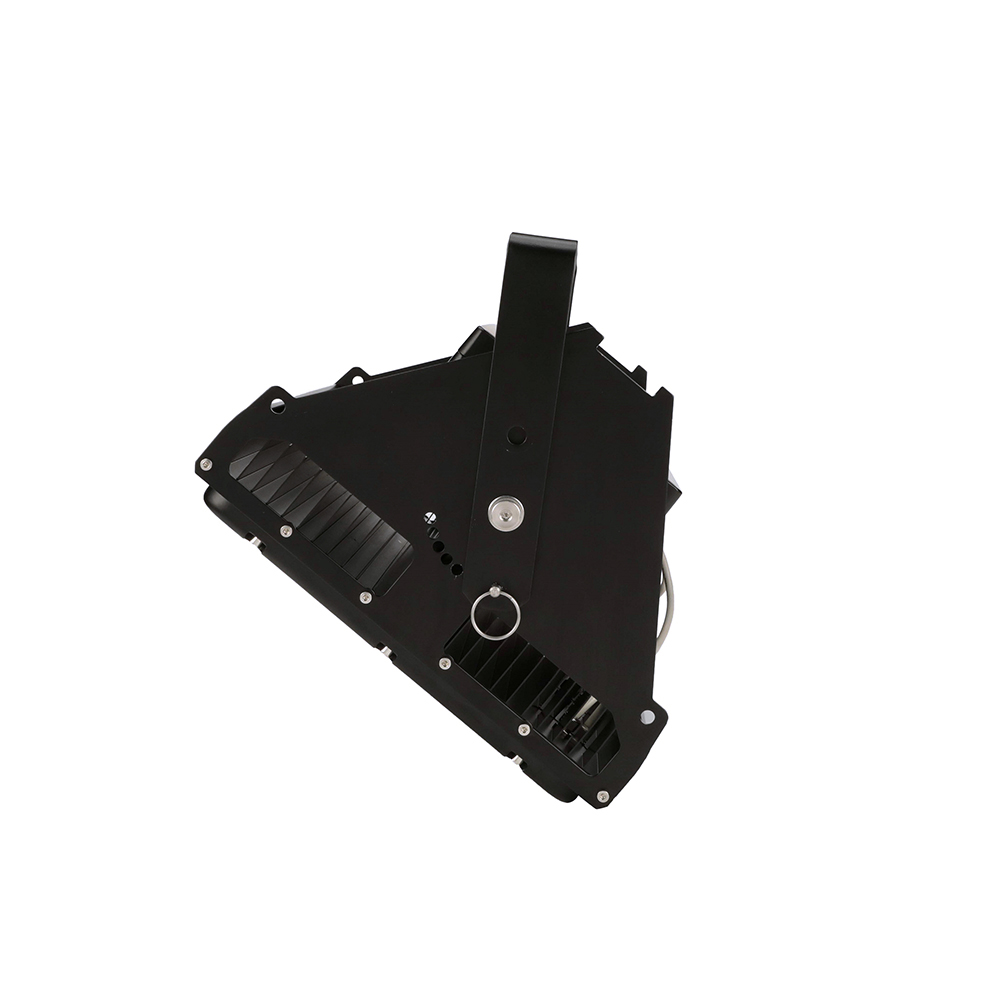

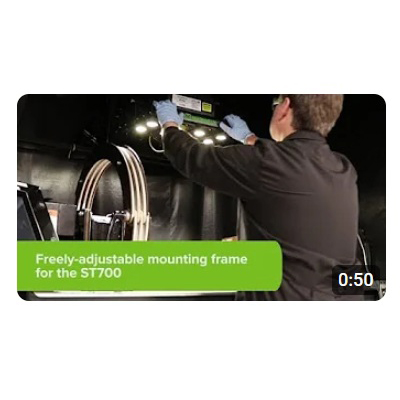

Designed to stand up to harsh inspection environments, the ST700's durable aluminum construction prevents accidental damage to the light. A range of mounting and angling options allow it to be set up anywhere in the inspection process - from mag benches and inspection booths to wash stations.

The ST700 is certified to NDT standards for LED UV lamps and certified for Aerospace Prime and OEM specifications for emission spectrum and beam profile. Each unit is shipped with a manufacturer's certificate of conformance which meets or exceeds all current specifications for use with fluorescent liquid penetrant and magnetic particle testing.

Speed up the inspection process

  • Inspect more of the part at once thanks to the ultra-wide beam
  • Eliminate additional steps and equipment involved with using a secondary hand-held inspection lamp

Minimise risk of missing indications

  • Indications stand out bright and clear due to high intensity LED technology
  • Mount the light out of the way, up to 117 cm above the inspection surface, while still maintaining inspection level intensity

Real-world reliability

  • Fully sealed construction prevents dust and water damage
  • Maintain UV intensity and coverage over time with non-clouding, proprietary lenses
  • Rugged, impact resistant metal construction designed for NDT environments

Ordering Information

ST700 Europe Model628244

ST700 5k Europe Model629257

Product Properties

NDT TypeFluorescent Penetrant Testing and Fluorescent Magnetic Particle Inspection

Compliance

StandardsAirbus AITM6-1001, ASTM E2297, ASTM E3022, ISO 3059, Rolls Royce RRES 90061
