Demagnetisation Equipment

Remove residual magnetism after magnetic particle inspection

Magnaflux demagnetisation units remove any residual magnetism remaining after conducting Magnetic Particle Inspection. Demagnetisation of ferromagnetic parts and materials often requires a requisite to final finishing or to ready an item for its ultimate use. Industrial demagnetising is not an easy task, unless an effective demagnetising system is used. It is especially difficult when the magnetic field must be reduced to a very low level. Compact in sise and ruggedly built, Magnaflux demagnetising equipment offers a fast and efficient method for demagnetising a broad variety of part types and sizes.

Magnaflux Product	Description	Part Number
ETT Series	The compact demagnetisation tunnels of the ETT series are designed for table-top use. Spool current activated by an ON/OFF switch Saturation depth of the 50 Hs alternating field: approx. 2mm Available in standard and reinforced models	See the Product Data Sheet
ETW Series	Our ETW demagnetisation units with trolley are ideal for demagnetising large, heavy parts which cannot be easily passed through a spool. You place the part onto the trolley and manually push it through the tunnel, where the demagnetisation spools generate a strong magnetic field. Loading aides, distancers and safety grids available on request. Available in standard and reinforced models	See the Product Data Sheet
ETB Series	Our ETB demagnetisation units are primarily used with automated systems. You can place the test part onto the conveyor manually or with the aid of manipulators, e.g. an ejector. Optional lateral guides can allow for exact alignment along the entire length of the conveyor.	See the Product Data Sheet

Magnaflux Product

Description

Part Number

ETT Series

The compact demagnetisation tunnels of the ETT series are designed for table-top use.

Spool current activated by an ON/OFF switch
Saturation depth of the 50 Hs alternating field: approx. 2mm
Available in standard and reinforced models

See the Product Data Sheet

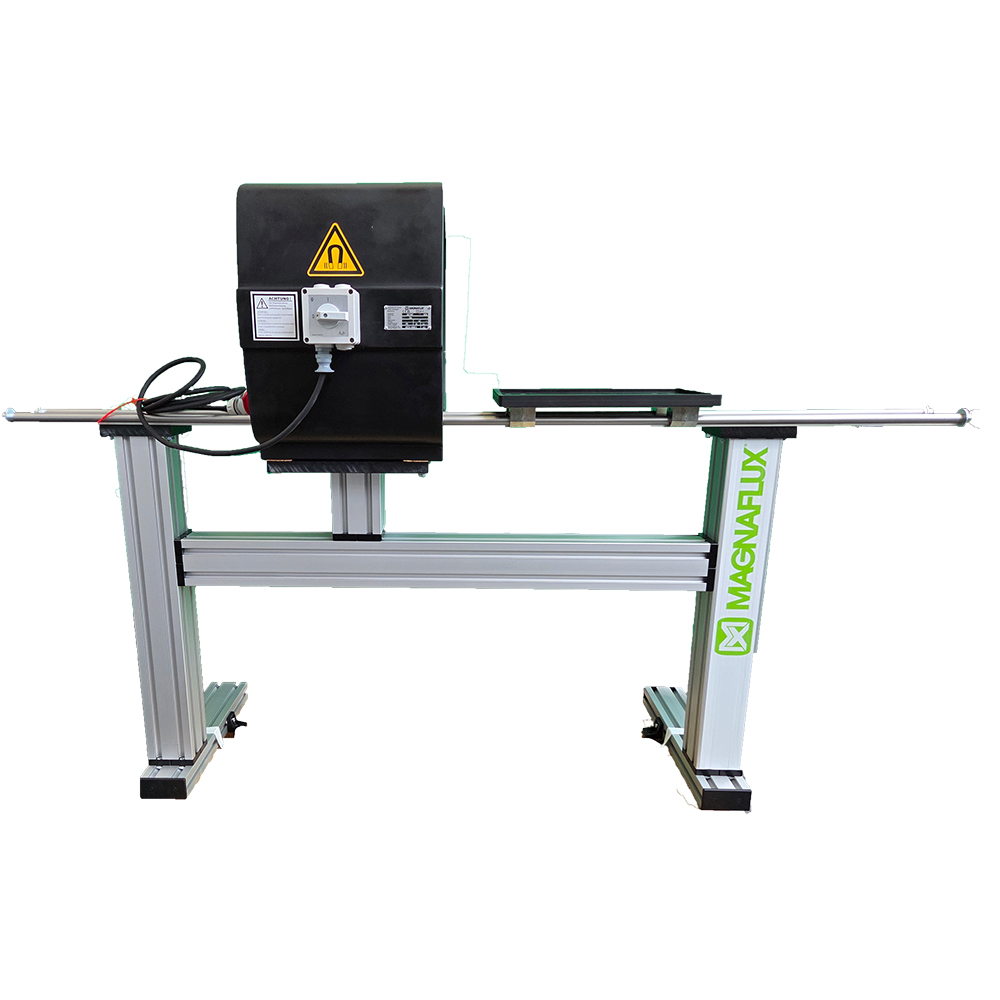

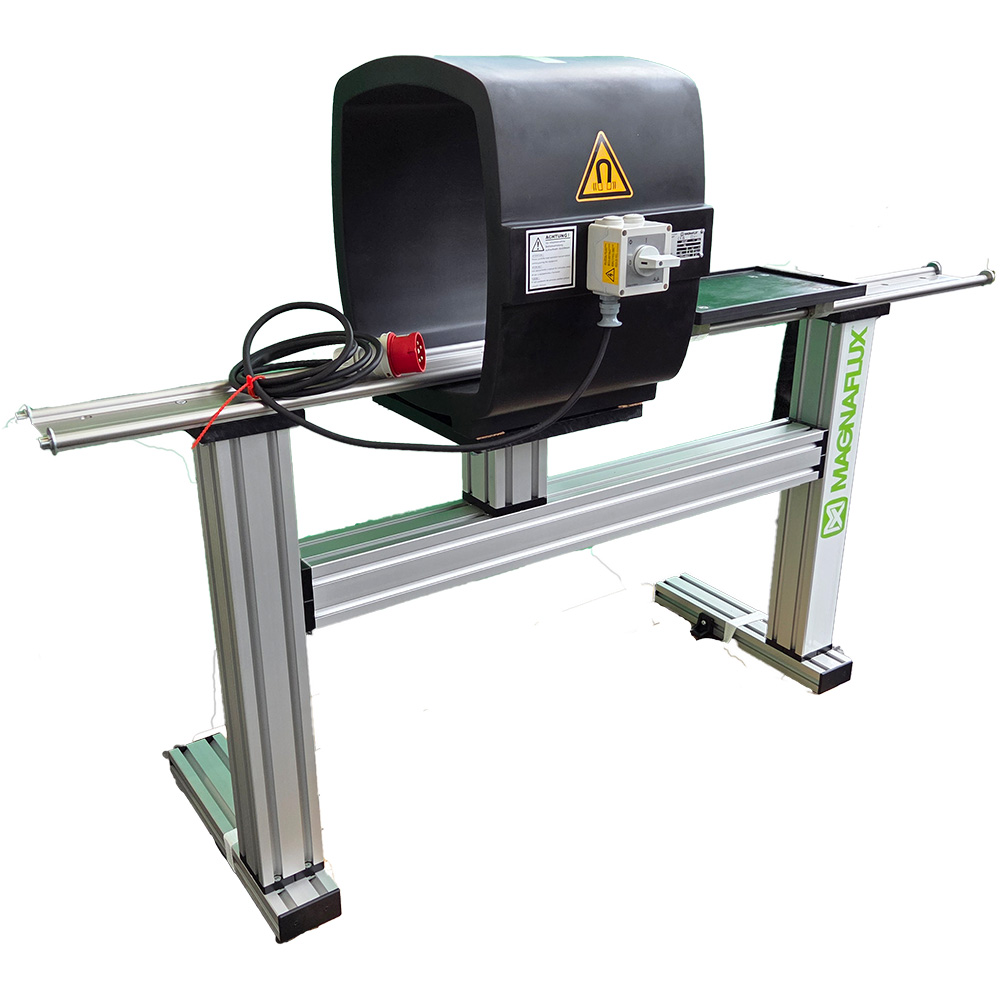

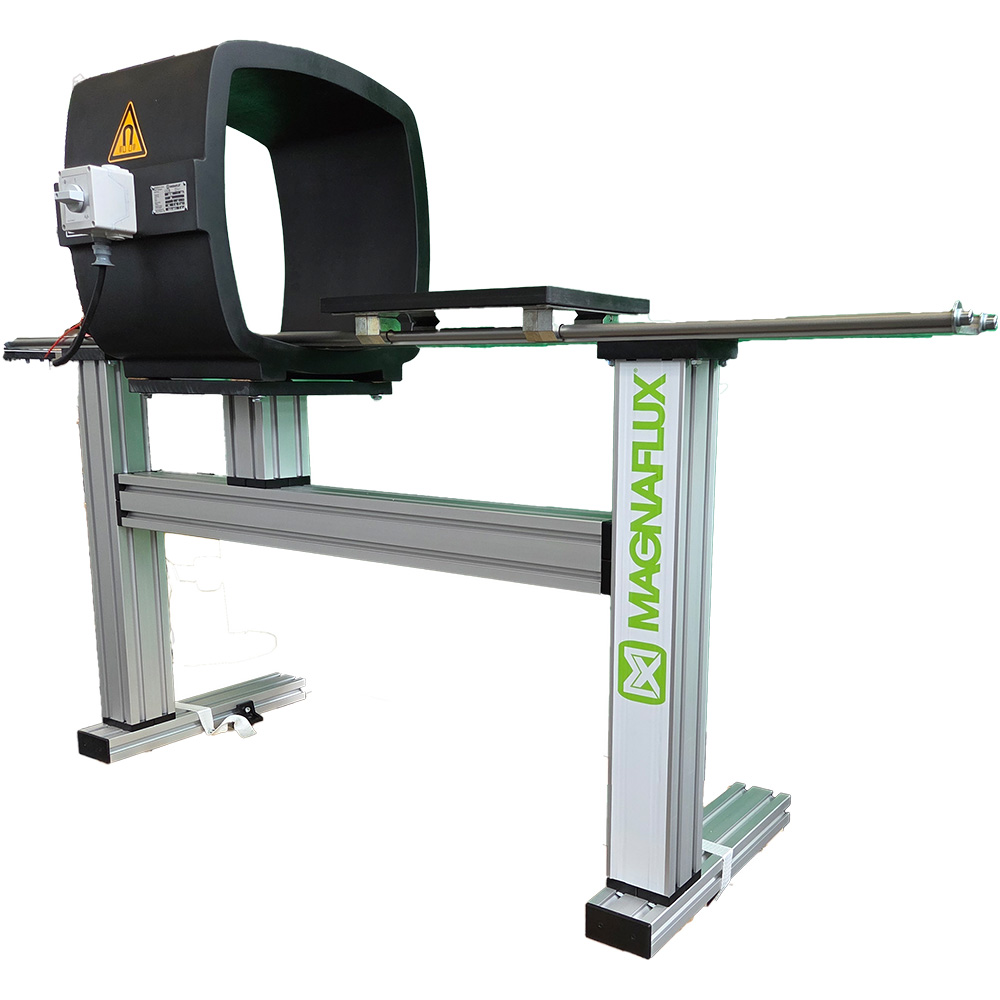

ETW Series

Our ETW demagnetisation units with trolley are ideal for demagnetising large, heavy parts which cannot be easily passed through a spool. You place the part onto the trolley and manually push it through the tunnel, where the demagnetisation spools generate a strong magnetic field.

Loading aides, distancers and safety grids available on request.
Available in standard and reinforced models

See the Product Data Sheet

ETB Series

Our ETB demagnetisation units are primarily used with automated systems. You can place the test part onto the conveyor manually or with the aid of manipulators, e.g. an ejector. Optional lateral guides can allow for exact alignment along the entire length of the conveyor.

See the Product Data Sheet

Product Properties

NDT TypeFluorescent Magnetic Particle Testing, Visible Magnetic Particle Testing

Applications

Ideal ApplicationDemagnetising parts
