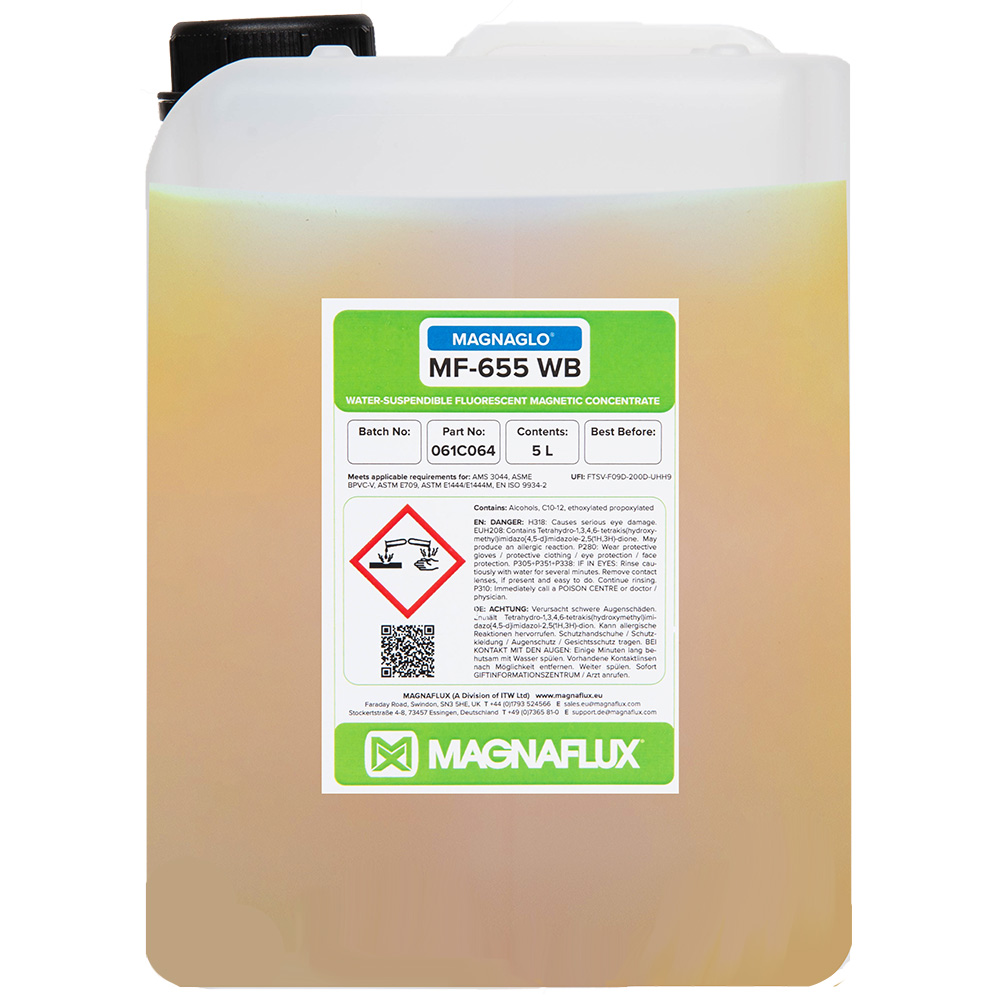

MF-655 WB is a highly-sensitive magnetic particle liquid concentrate for locating fine discontinuities. The ultra-sensitive particles provide clear, bright, fluorescent green indications under ultra-violet black light for unbeatable inspection quality and accuracy, and the water conditioners provide enhanced corrosion protection.
NDT TypeFluorescent Magnetic Particle Testing
Particle Suspension VehicleWater
Required EquipmentMagnetizing device, UV light source
Ideal ApplicationAfter secondary processing, Critical applications, Detecting fine to very-fine discontinuities, High volume testing, Machined parts, Mixing with hard-water, Smooth surface finish
Defect ExamplesFatigue cracks, Grinding cracks, Inclusions, Laps, Quenching cracks, Seams, Shrink cracks, Tears, Weld defects
StandardsAMS 3044, ASME BPVC, ASTM E1444/E1444M, ASTM E709, ISO 9934-2, MIL-STD-2132, NAVSEA 250-1500-1, SAE AS4792
MG 601 fluorescent magnetic particles for wet method MPI in UV light.
WA-1 is a general-purpose water-conditioning liquid for improving water-based magnetic particle suspensions
WA-2 general-purpose, silicone-free defoaming additive to prevent foaming in water-based products
SKC-S cleaner and remover for pre-cleaning before testing and for removing excess surface penetrant.
Centrifuge tubes to measure settling volume concentration
EV6000 portable, hand-held LED UV lamp for fluorescent PT and MT
LED UV lamps and black lights for non-destructive testing
